How to Tune SQL Statement with CASE Expression for SQL Server II?

We have discussed how to tune a CASE expression SQL with hardcoded literals in my last blog:

How to Tune SQL Statement with CASE Expression for SQL Server I? | Go4Expert

Code:

SELECT *
  FROM EMPLOYEE
WHERE
 CASE
  when emp_id  < 1001000 then 'Old Employee'
  when emp_dept <'B'      then 'Old Department'
ELSE 'Normal'
 END = 'Old Employee'

If I change the hardcoded literal to a @var, what will be the performance of the last blog’s rewritten SQL?

Code:

SELECT *
  FROM EMPLOYEE
WHERE
 CASE
  when emp_id  < 1005000 then 'Old Employee'
  when emp_dept <'B'      then 'Old Department'
ELSE 'Normal'
 END = @var

I use the same method in my last blog to rewrite this SQL into the following multiple OR syntax, but the SQL Server optimizer change back to a full table scan of the EMPLOYEE table. It is because the SQL Server cannot do a good cardinality estimation of the variable of @var.

Code:

select *
from  EMPLOYEE
where  emp_id < 1005000
      and 'Old Employee' = @var
      or not ( emp_id < 1005000 )
          and emp_dept < 'B'
          and 'Old Department' = @var
      or not ( emp_id < 1005000 )
          and not ( emp_dept < 'B' )
          and 'Normal' = @var

We can rewrite the CASE expression into the following syntax with multiple UNION ALL statements, this syntax is more complicated than the rewrite with multiple OR conditions in my last blog. But it can make SQL Server improve the query plan to be more efficient.

Code:

select *
from  EMPLOYEE
where  emp_id < (select 1005000)
       and 'Old Employee' = @var
union all
select *
from  EMPLOYEE
where  ( not ( emp_id < 1005000
               and 'Old Employee' = @var )
         or @var is null )
       and emp_id >= 1005000
       and emp_dept < 'B'
       and 'Old Department' = @var
union all
select *
from  EMPLOYEE
where  ( not ( emp_id < 1005000
               and 'Old Employee' = @var )
         or @var is null )
       and ( not ( emp_id >= 1005000
                   and emp_dept < 'B'
                   and 'Old Department' = @var )
             or @var is null )
       and emp_id >= 1005000
       and emp_dept >= 'B'
       and 'Normal' = @var

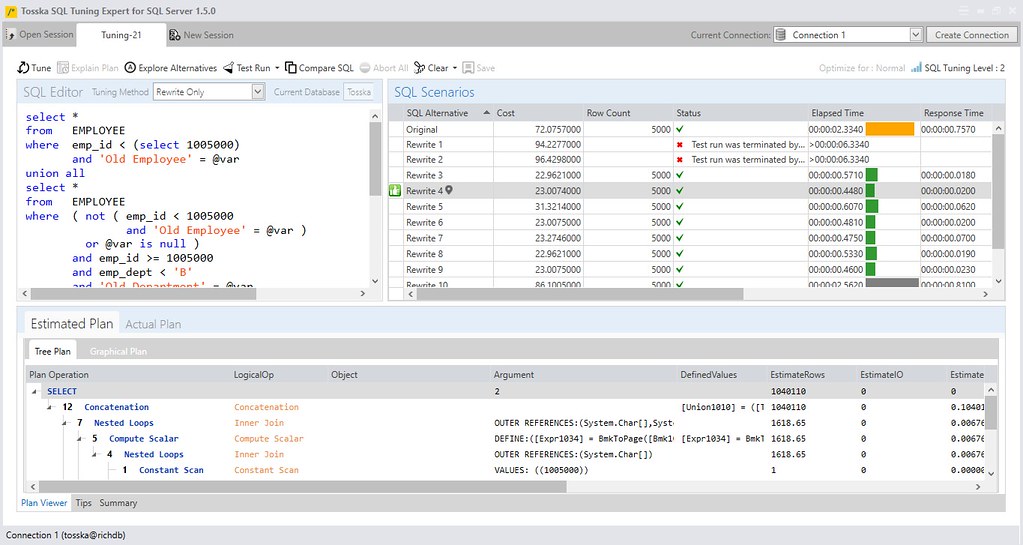

Here is the query plan of the rewritten SQL and the speed is 0.448 seconds. It is 5 times better than the original syntax. People may think that there are two table scan operations of EMPLOYEE that will slow down the whole process, but actually, the corresponding filter operations will stop the table scan operations immediately due to the filter conditions 'Normal' = @var and 'Old Department' = @var will not be satisfied. This kind of query plan cannot be generated by SQL Server’s internal SQL optimizer, it means that you cannot use Hints injection to get this query plan.

This kind of rewrite can be achieved by Tosska SQL Tuning Expert for SQL Server automatically.

Tosska SQL Tuning Expert (TSES™) for SQL Server® - Tosska Technologies Limited
