How to Tune SQL with SEMI JOIN by Hints INDEX_DESC Injection for Oracle?

Discussion in 'Oracle' started by Richard To, Dec 6, 2020.

  1. Richard To

    Richard To Member

    Joined:
    Sep 18, 2017
    Messages:
    45
    Likes Received:
    17
    Trophy Points:
    8
    Gender:
    Male
    Semi-join is introduced in Oracle 8.0. It provides an efficient method of performing a WHERE EXISTS or WHERE IN sub-queries. A semi-join returns one copy of each row in first table for which at least one match is found in second table, there is no need of further scanning of the second table once a record is found.


    SELECT *
    FROM DEPARTMENT​
    where dpt_id
    in (select emp_dept from EMPLOYEE
    where emp_id >3300000)​

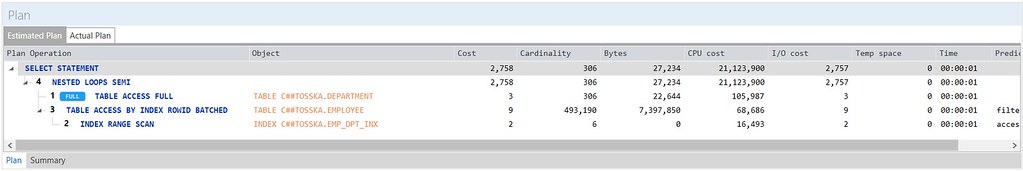

    Here the following is the query plan of this SQL, it takes 13.59 seconds to finish. The query shows a “NESTED LOOPS SEMI” from DEPARTMENT to EMPLOYEE table.
    [​IMG]
    Basically, this SQL is difficult to optimize by just syntax rewrite due to the simplicity of the SQL syntax that Oracle is easily transformed into a canonical syntax internally, so not much alternative query plan can be triggered by syntax rewrite.

    Let’s use Hints injection to the SQL and see if there any brutal force of hints injection can trigger a better performance plan. With our A.I. Hints Injection algorithm applying to the SQL, it comes up with a SQL with extraordinary performance improvement that even I cannot understand at the first glance.

    SELECT /*+ INDEX_DESC(@SEL$2 EMPLOYEE) */ *
    FROM DEPARTMENT
    WHERE dpt_id IN (SELECT emp_dept
    FROM EMPLOYEE
    WHERE emp_id > 3300000)
    Here is the query plan of the hints injected SQL and it is now running much faster. The new query plan shows that the “INDEX RANGE SCAN” of EMP_DPT_INX to EMPLOYEE table is changed to “INDEX RANGE SCAN DESCENDING” and the estimated cost is the same as the Original SQL.
    [​IMG]
    The Hints /*+ INDEX_DESC(@SEL$2 EMPLOYEE) */ injected SQL takes only 0.05 second, it is much faster than the original SQL, the reason behind is the employee records creation order in EMPLOYEE table, the higher the emp_id will be created later, so the corresponding records will be inserted into the right hand side of the EMP_DPT_INX index tree nodes. The “INDEX RANGE SCAN” in the original SQL plan that needs to scan a lot of records from left to right direction before it can hit one record for the condition “WHERE emp_id > 3300000”. In contrast, the Hints injected SQL with the “INDEX RANGE SCAN DESCENDING” operation that can evaluate the WHERE condition with only one scan from right to left on EMP_DPT_INX index tree nodes. That explains why the Hints injected SQL outperformed the original SQL by more than 270 times.

    It is common that we employ “transaction id”, “serial no” or “creation date” in our application design, this kind of the records are normally created alone with an increasing sequence order, there may be some SQL in your system can be improved by this technique.

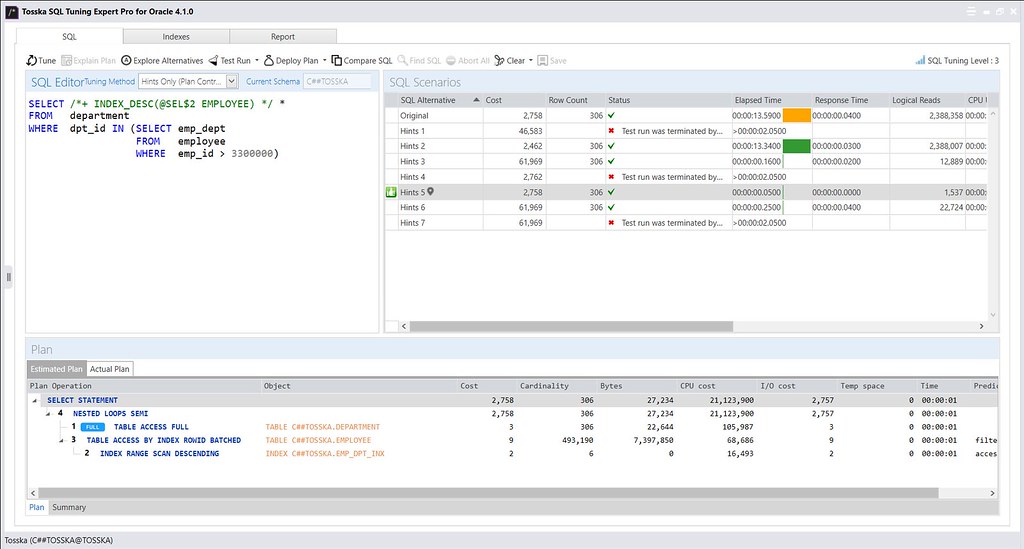

    This kind of rewrites or Hints injection can be achieved by Tosska SQL Tuning Expert for Oracle automatically, it shows that the Hints injected SQL is more than 270 times faster than the original SQL.

    https://tosska.com/tosska-sql-tuning-expert-pro-tse-pro-for-oracle/
    [​IMG]
